Heavy Duty Auto Truck RV Repair Manual Air Hydraulic Bottle Jack 20/32/50 Ton

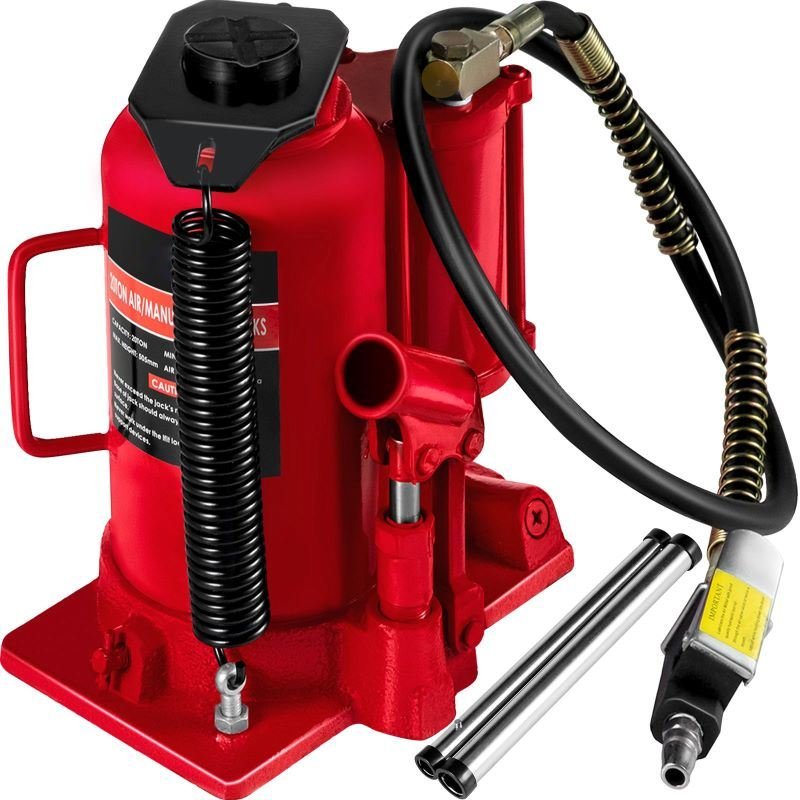

Air Hydraulic Bottle Jack 20 Ton

Specification

Color: Red/Blue

Material: Q235 Steel

Minimum Height: 10-1/4"(26cm)

Maximum Height: 20"(51cm)

Lifting Height: 6-5/8"(17cm)

Adjust Height: 3-1/8"(8cm)

Load Capacity: 20 Ton(44092lb)

Working Pressure: 120-200PSI

4 Foot Air Hose With 1/4 Inch By 19NPT Inlet

Package Content

1 x Bottle Jack

1 x User's Manual

Feature

20 tons/44092 lbs bottle jack is ideal for large size and heavy-duty applications. It integrates a pneumatic jack with a hydraulic jack into this one car bottle jack. It is ideal for lifting heavy-duty machinery, industrial construction equipment, farm vehicles, and more.

6-5/8" Lifting Range: With its powerful pneumatic and hydraulic power, our bottle jack can lift a maximum of 20 tons/44092 lbs and has a lifting range of up to 10-1/4 in/26 cm to 20 in/51 cm.

Labor-saving Dual Operations: Working pressure range: 120 psi-200 psi. Manual lifting is also possible with the splicing handle. The design allows the jack to work securely even without power.

Retractable Springs & Rod: A compact structure with dual fast retractable springs to ensure the product can be successfully reset after use. The height of the rod can be adjusted flexibly. Rod adjustable height: 3-1/8 in/8 cm.

Heavy-Duty Steel Structure: This pneumatic bottle jack is made of Q235 steel material, providing maximum durability and security. The highly rugged construction provides both power and security.

32 Ton/70550lbs Pneumatic Hydraulic Bottle Jack

Specifications

Material: Steel

Lift Capacity: 70550 lbs / 32 Ton

Operation: Air / Hydraulic

Min Height: 10.4" / 26.5 cm

Max Height: 16.7" / 42.5 cm

Lifting Range: 6.3" / 16 cm

Working Pressure: >100 PSI

Item Weight: 46.3 lbs / 21 kg

Size: 9.1" x 7.9" x 10.4" / 23 x 20 x 26.5 cm

Package Content

1 x Air Hydraulic Bottle Jack

1 x Detachable Handle

1 x Rubber Hose

2 x Oil Seal

Feature

32 tons/70550 lbs bottle jack is ideal for large size and heavy-duty applications. It is ideal for lifting heavy-duty machinery, industrial construction equipment, farm vehicles, and more. Our bottle jack is great for sedans, SUV, travel trailer, minivan, bus, RV.

6-3/10" Lifting Range: With its powerful pneumatic and hydraulic power, our bottle jack can lift a maximum of 32 tons/70550 lbs and has a lifting range of up to 10-2/5" (26-1/2 cm) to 16-7/10" (42-1/2 cm).

Pneumatic & Manual Operations: Connect to the air compressor, press the trigger directly, the bottle jack will rise effortlessly. Working Pressure: >100 PSI. Manual lifting is also possible with the two-section rod. The design allows the jack to work securely even without power.

Retractable Springs & Sturdy Saddle: Equipped with dual retractable springs to ensure a fast and smooth reset after use. The non-slip saddle can hold your vehicle securely without tilting.

Heavy-duty Steel Structure: Our pneumatic bottle jack is made of steel material, providing maximum durability and security. The highly rugged construction provides both power and security.

50 Ton Manual 110200lbs Heavy Duty Auto Truck RV Repair

Specifications

Minimum Height: 10-1/2" (27 cm)

Maximum Height: 17" (43 cm)

Lifting Height: 6-3/10" (16 cm)

Air Rubber Hose Length: 48" (122 cm)

Air Valve And Inlet: 1/4" X 18NPT

Working Pressure: 120-200 PSI

Max Pressure: 220 PSI

Package Content

1 x Hydraulic Jack

2 x Wheels

2 x Splicing Handles

Feature

50 tons/110231 lbs bottle jack is ideal for large size and heavy-duty applications. It integrates a pneumatic jack with a hydraulic jack into this one car bottle jack. It is ideal for lifting heavy-duty machinery, industrial construction equipment, farm vehicles, and more.

6-3/10" Lifting Range: With its powerful pneumatic and hydraulic power, our bottle jack can lift a maximum of 50 tons/110231 lbs and has a lifting range of up to 10-1/2 in/27 cm to 17 in/43 cm.

Labor-saving Dual Operations: Working pressure range: 120 psi-200 psi. With high-strength air tube, the enhanced compressed air lift with reinforced seal can ensure your security. Manual lifting is also possible with the splicing handle. The design allows the jack to work securely even without power.

Built-in Wheels: With two big wheels and a portable handle, the bottle jack is not trouble when it comes to movement and splicing handles also mean that the storage is easy.

Heavy-Duty Steel Structure: This pneumatic bottle jack is constructed of heavy-duty steel for maximum durability. The serrated saddle provides a spacious lifting area. The wide and thick base provides stable support and security.

Illustrate

Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. Please refer to the actual product. The measurement allowed error is +/- 1-3cm.
